sueboy: 09 6月 2019

OpenID hydra docker-compose STOP

https://github.com/ory/examples/blob/master/full-stack/docker-compose.yml

Maybe use 5 min quickstart.yml better.

OpenID hydra SSL problem Finish!

1、use docker-machine create vm get ip: 192.168.99.100

2、deploy
https://www.ory.sh/docs/next/hydra/configure-deploy


docker network create hydraguide


docker run \
  --network hydraguide \
  --name ory-hydra-example--postgres \
  -e POSTGRES_USER=hydra \
  -e POSTGRES_PASSWORD=secret \
  -e POSTGRES_DB=hydra \
  -d postgres:9.6


export SECRETS_SYSTEM=this_needs_to_be_the_same_always_and_also_very_$3cuR3-._

export DSN=postgres://hydra:secret@ory-hydra-example--postgres:5432/hydra?sslmode=disable

docker pull oryd/hydra:latest


docker run -it --rm \
  --network hydraguide \
  oryd/hydra:latest \
  migrate sql --yes $DSN

=====creat ssl cert and key====
！！注意！！產生方式改用 https://sueboy.blogspot.com/2019/08/openssl-self-signed-certificate.html 較為保險，不容易發生 ERR_SSL_VERSION_OR_CIPHER_MISMATCH 錯誤！

create two cert. 1. t.tt 2. openid.hydra


In vm
openssl genrsa -out t.tt.key 2048
openssl ecparam -genkey -name secp384r1 -out t.tt.key
openssl req -new -x509 -sha256 -key t.tt.key -out t.tt.crt -days 3650
Important!! t.tt.crt step: Common Name (e.g. server FQDN or YOUR name) []: t.tt


openssl genrsa -out openid.hydra.key 2048
openssl ecparam -genkey -name secp384r1 -out openid.hydra.key
openssl req -new -x509 -sha256 -key openid.hydra.key -out openid.hydra.crt -days 3650
Important!! openid.hydra.crt step: Common Name (e.g. server FQDN or YOUR name) []: openid.hydra

Use openid.hydra.key and openid.hydra.crt to base64 code
https://www.base64encode.org/

openid.hydra.key

openid.hydra.crt


docker run -d \
  --name ory-hydra-example--hydra \
  --network hydraguide \
  -p 9001:4444 \
  -p 9002:4445 \
  -e SECRETS_SYSTEM=$SECRETS_SYSTEM \
  -e DSN=$DSN \
  -e URLS_SELF_ISSUER=https://openid.hydra:9001/ \
  -e URLS_CONSENT=http://192.168.99.100:9020/consent \
  -e URLS_LOGIN=http://192.168.99.100:9020/login \
  -e LOG_LEVEL=debug \
  -e OAUTH2_EXPOSE_INTERNAL_ERRORS=1 \
  -e SERVE_PUBLIC_CORS_ENABLED=true \
  -e SERVE_PUBLIC_CORS_ALLOWED_METHODS=POST,GET,PUT,DELETE \
  -e SERVE_ADMIN_CORS_ENABLED=true \
  -e SERVE_ADMIN_CORS_ALLOWED_METHODS=POST,GET,PUT,DELETE \
  -e SERVE_TLS_KEY_BASE64=LS0tLS1CRUdJTiBFQyBQQVJBTUVURVJTLS0tLS0KQmdVcmdRUUFJZz09Ci0tLS0tRU5EIEVDIFBBUkFNRVRFUlMtLS0tLQotLS0tLUJFR0lOIEVDIFBSSVZBVEUgS0VZLS0tLS0KTUlHa0FnRUJCRENLbkdnVnFJVzdZaW5iUWV5UEd5UTQ0R3U2VVFEelU5SENLYjMzTWlmeFJYRTBkbnU2KzdadQowdEJUcUhQRHVMeWdCd1lGSzRFRUFDS2haQU5pQUFSbng1Nk9jeGNyRWRsYmU4TXRSdUVxWGV2OEREcmh6ZWJGCjM4NlI4Q2RQWDRlUWI2Zll6ekFUL3V3STBsTDdvRmlEWEM3Q0JLWmZUcTdFSzN4TzNXWlpSSjJrMEQ3TnNLd2cKVEpZenJxT0JpczBNeGtva2FUWVVyemhKMXBKY3lmWT0KLS0tLS1FTkQgRUMgUFJJVkFURSBLRVktLS0tLQo= \
  -e SERVE_TLS_CERT_BASE64=LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUNQVENDQWNLZ0F3SUJBZ0lKQU13RjRiVDRvSnh0TUFvR0NDcUdTTTQ5QkFNQ01Gd3hDekFKQmdOVkJBWVQKQWtGVk1STXdFUVlEVlFRSURBcFRiMjFsTFZOMFlYUmxNU0V3SHdZRFZRUUtEQmhKYm5SbGNtNWxkQ0JYYVdSbgphWFJ6SUZCMGVTQk1kR1F4RlRBVEJnTlZCQU1NREc5d1pXNXBaQzVvZVdSeVlUQWVGdzB4T1RBMk1UY3dNVEl4Ck16ZGFGdzB5T1RBMk1UUXdNVEl4TXpkYU1Gd3hDekFKQmdOVkJBWVRBa0ZWTVJNd0VRWURWUVFJREFwVGIyMWwKTFZOMFlYUmxNU0V3SHdZRFZRUUtEQmhKYm5SbGNtNWxkQ0JYYVdSbmFYUnpJRkIwZVNCTWRHUXhGVEFUQmdOVgpCQU1NREc5d1pXNXBaQzVvZVdSeVlUQjJNQkFHQnlxR1NNNDlBZ0VHQlN1QkJBQWlBMklBQkdmSG5vNXpGeXNSCjJWdDd3eTFHNFNwZDYvd01PdUhONXNYZnpwSHdKMDlmaDVCdnA5alBNQlArN0FqU1V2dWdXSU5jTHNJRXBsOU8KcnNRcmZFN2RabGxFbmFUUVBzMndyQ0JNbGpPdW80R0t6UXpHU2lScE5oU3ZPRW5Xa2x6SjlxTlFNRTR3SFFZRApWUjBPQkJZRUZHK3Z6ZkIxYmVnM1VadEpYRXZWOWRNa1hvNmdNQjhHQTFVZEl3UVlNQmFBRkcrdnpmQjFiZWczClVadEpYRXZWOWRNa1hvNmdNQXdHQTFVZEV3UUZNQU1CQWY4d0NnWUlLb1pJemowRUF3SURhUUF3WmdJeEFMUHYKODZFSFRUVElLcEJHdlQrY2NWN3djSC84SFIrc2xhZC9ZUFhLUlZwd2RDbzUyZVRPV3BDS2dGamtHNEJhd1FJeApBTGxGZFgwbEk2ZzhXS3lhRTVmKzJGZEkxYWVqQ0Ftd0xPTTZTRFJhNFVHbitDa2VwOEljeG1CTDIvQmUzSVZ6CjhnPT0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo= \
  oryd/hydra:latest serve all

LOG_LEVEL ~ SERVE_ADMIN_CORS_ALLOWED_METHODS not important, add by yourself.


docker run -d \
  --name ory-hydra-example--consent \
  -p 9020:3000 \
  --network hydraguide \
  -e HYDRA_ADMIN_URL=https://ory-hydra-example--hydra:4445 \
  -e NODE_TLS_REJECT_UNAUTHORIZED=0 \
  oryd/hydra-login-consent-node:latest


docker run --rm -it \
  -e HYDRA_ADMIN_URL=https://ory-hydra-example--hydra:4445 \
  --network hydraguide \
  oryd/hydra:latest \
  clients create --skip-tls-verify \
    --id auth-code-client \
    --secret secret \
    --grant-types authorization_code,refresh_token \
    --response-types token,code,id_token \
    --scope openid,offline,photos.read \
    --callbacks https://t.tt:9010/callback

This step is different quickstart.yml. Use https and t.tt domain. quickstart.yml start serve --dangerous-force-http
All become http. So last step can callback use http. This production way only use https. And token user only http. So use self OpenID client.

1. nano /etc/hosts or windows hosts

127.0.0.1 t.tt

192.168.99.100 openid.hydra

2. use golang OpenID client + ssl

https://blog.csdn.net/wangshubo1989/article/details/77980316
https://github.com/denji/golang-tls

copy t.tt.key and t.tt.crt to go project

main.go


package main

import (
 "context"
 "crypto/tls"
 "fmt"
 "log"
 "net/http"
 "strings"

 "golang.org/x/oauth2"
)

const htmlIndex = `
<html><body>
<a href="/HydraLogin">Log in with Hydra</a>
</body></html>
`
var endpotin = oauth2.Endpoint{
 AuthURL:  "https://openid.hydra:9001/oauth2/auth",
 TokenURL: "https://openid.hydra:9001/oauth2/token",
}

var HydraOauthConfig = &oauth2.Config{
 ClientID:     "auth-code-client",
 ClientSecret: "secret",
 RedirectURL:  "https://t.tt:9010/callback",
 Scopes:       []string{"openid", "offline", "photos.read"},
 Endpoint:     endpotin,
}

const oauthStateString = "gczxkznmjkrksgytsemvwgkf"

func main() {
 http.HandleFunc("/", handleMain)
 http.HandleFunc("/HydraLogin", handleHydraLogin)
 http.HandleFunc("/callback", handleCallback)
 //fmt.Println(http.ListenAndServe(":9010", nil))
 err := http.ListenAndServeTLS(":9010", "t.tt.crt", "t.tt.key", nil)
 if err != nil {
  log.Fatal("ListenAndServe: ", err)
 }
}

func handleMain(w http.ResponseWriter, r *http.Request) {
 fmt.Fprintf(w, htmlIndex)
}

func handleHydraLogin(w http.ResponseWriter, r *http.Request) {
 url := HydraOauthConfig.AuthCodeURL(oauthStateString)
 log.Println(url)
 http.Redirect(w, r, url, http.StatusTemporaryRedirect)
}

func handleCallback(w http.ResponseWriter, r *http.Request) {
 // add transport for self-signed certificate to context
 tr := &http.Transport{
  TLSClientConfig: &tls.Config{InsecureSkipVerify: true},
 }
 sslcli := &http.Client{Transport: tr}
 ctx := context.TODO()
 ctx = context.WithValue(ctx, oauth2.HTTPClient, sslcli)

 state := r.FormValue("state")
 if state != oauthStateString {
  log.Printf("invalid oauth state, expected '%s', got '%s'\n", oauthStateString, state)
  http.Redirect(w, r, "/", http.StatusTemporaryRedirect)
  return
 }
 log.Println("state:", state)

 code := r.FormValue("code")
 log.Println("code: ", code)
 token, err := HydraOauthConfig.Exchange(ctx, code)
 if err != nil {
  log.Println("Code exchange failed with:", err)
  http.Redirect(w, r, "/", http.StatusTemporaryRedirect)
  return
 }

 TokenMsg := "<p>Token Info</p>"
 TokenMsg += fmt.Sprintf("token.AccessToken ： %s \n", token.AccessToken)
 TokenMsg += fmt.Sprintf("token.TokenType ： %s \n", token.TokenType)
 TokenMsg += fmt.Sprintf("token.RefreshToken ： %s \n", token.RefreshToken)
 TokenMsg += fmt.Sprintf("token.Expiry ： %s \n", token.Expiry)
 TokenMsg += fmt.Sprintf("token Exra id_token ： %s \n", token.Extra("id_token"))
 TokenMsg += fmt.Sprintf("token Exra scope ： %s \n", token.Extra("scope"))

 log.Println(TokenMsg)

 log.Println("===========all token==========")
 log.Println("token: ", token)

 log.Println("Authentication token.... ")
 client := HydraOauthConfig.Client(ctx, token)
 resp, err := client.Get("https://openid.hydra:9001/")
 if err != nil {
  log.Println(err)
 } else {
  log.Println("Authentication successful !!")
 }
 defer resp.Body.Close()

 // show succes page
 msg := "<p><strong>Success!</strong></p>"
 msg += "<p>You are authenticated and can now return to the CLI.</p>"
 msg += strings.ReplaceAll(TokenMsg, "\n", "<p>")

 fmt.Fprintf(w, msg)

 //response, err := http.Get("https://openid.hydra:9001/userinfo?access_token=" + token.AccessToken)
 //defer response.Body.Close()
 //contents, err := ioutil.ReadAll(response.Body)
 //fmt.Fprintf(w, "Content: %s\n", contents)
}

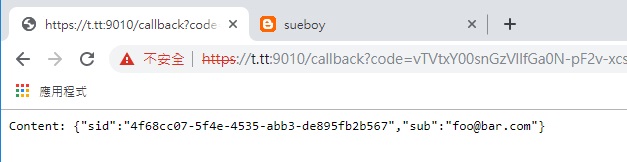

Try https://t.tt Now can run finish all step.

hydra.rest


###
@audience = audience=
@max_age = max_age=0
@nonce = nonce=kwhqocyluutsstfouosxluqc
@prompt = prompt=

@response_type = response_type=code
@state = state=gczxkznmjkrksgytsemvwgkf

@client_id = client_id=auth-code-client
@scope = scope=openid+offline+photos.read
@redirect_url = redirect_url=https%3A%2F%2Ft.tt%3A9010%2Fcallback

@auth-tailpart = {{audience}}&{{max_age}}&{{nonce}}&{{prompt}}
@9001_auth = https://openid.hydra:9001/oauth2/auth?

### get hydra login page
Get {{9001_auth}}&{{client_id}}&{{redirect_url}}&{{scope}}&{{response_type}}&{{state}}&{{auth-tailpart}}

###
//提醒：csrf可以不更新，challenge一定要更新
@9020_login = http://192.168.99.100:9020/login
@9020_consent = http://192.168.99.100:9020/consent
@_csrf1 = Gxa6Hip4-J_A3L2kpRc72Iclw_Ql8eIcQiTc
@login_challenge = bc55b64985f1400b90a2c2741f8780f2
@email = foo@bar.com
@password = foobar

### get login
GET https://192.168.99.100:9002/oauth2/auth/requests/login?login_challenge={{login_challenge}}

### login
#POST {{9020_login}}
#Content-Type: application/x-www-form-urlencoded

#_csrf={{_csrf1}}
#&challenge={{login_challenge}}
#&email={{email}}
#&password={{password}}

### accept login
PUT https://192.168.99.100:9002/oauth2/auth/requests/login/accept?login_challenge={{login_challenge}}
Content-Type: application/json

{
  "subject": "foo@bar.com",
  "remember": false,
  "remember_for": 3600
}

@login_verifier = login_verifier=1025ccb8109047668715c8162459d6de

### get conent
GET {{9001_auth}}{{login_verifier}}&{{client_id}}&{{redirect_url}}&{{scope}}&{{response_type}}&{{state}}&{{auth-tailpart}}

###
@consent_challenge = d23b6822d88842078a0d83677e8709a8
@_csrf2 = PLSPrz8R-GqmzKwgMtNus3LiX-p9Oh0QaLnQ

### requests consent
###GET {{9020_consent}}?consent_challenge={{consent_challenge}}


### get conent scope
GET https://192.168.99.100:9002/oauth2/auth/requests/consent?consent_challenge={{consent_challenge}}

@submit = Allow access

### accept conent scope
PUT https://192.168.99.100:9002/oauth2/auth/requests/consent/accept?consent_challenge={{consent_challenge}}
Content-Type: application/json

{
  "grant_scope": ["openid", "photos.read"],
  "session": {
    "access_token": { "foo": "bar" },
    "id_token": { "baz": "bar" }
  }
}

@consent_verifier = consent_verifier=ed04b20447c343338e9000b2db640f3c
### get auth token
GET {{9001_auth}}{{consent_verifier}}&{{client_id}}&{{redirect_url}}&{{scope}}&{{response_type}}&{{state}}&{{auth-tailpart}}
### http://192.168.99.100:4444/oauth2/auth?audience=&client_id=auth-code-client&consent_verifier=a643ae2e056543fabbd8d6f747e8a30c&max_age=0&nonce=chscixgzceuosfcocvvmjngj&prompt=&redirect_uri=http%3A%2F%2F127.0.0.1%3A5555%2Fcallback&response_type=code&scope=openid+offline&state=oplovvughuyzixqdvxnortrq

@token= xLPcJ3tobDqGUDxIVTxWt2p7w_odZSV22IAlUf5QPZU.YD6R_xKQ2ldCLbEV7mmc01E6ZLzemzdEC5H4-otTMPg
### userinfo
GET https://openid.hydra:9001/userinfo
Authorization: Bearer {{token}}
### introspect
POST https://openid.hydra:9002/oauth2/introspect
Content-Type: application/x-www-form-urlencoded

token={{token}}
&scope=openid+photos.read

###
GET https://openid.hydra:9002/oauth2/auth/sessions/consent?subject=foo@bar.com HTTP/1.1

PS：&scope=openid+photos.read can remove.

PS：
Here REST Client still return login page. go main server error log:

Post https://openid.hydra:9001/oauth2/token: x509: certificate signed by unknown authority

This is Go Server problem. See main.go Line：55-61 82-94 Fix this problem.

========== old ==========

3、Now have problem is token user. When you run *A, try to open web broswer. http://192.168.99.100:9010 then click "Authorize application" get error.
Because "Authorize application" still is 127.0.0.1. No way to change. So copy Link change it.


https://192.168.99.100:9001/oauth2/auth?audience=&client_id=auth-code-client&max_age=0&nonce=ylnybhabgcjllcxbfvhfjdfe&prompt=&redirect_uri=http%3A%2F%2F192.168.99.100%3A9010%2Fcallback&response_type=code&scope=openid+offline+photos.read&state=shqjytubxbrzqwtiskwwpfdp

Copy fix link to go. Fllow website.

4、The Big problem is Allow access only get error. Can't know why.

Rest Client || visual studio code

Even by step to run. Still get error......

OpenID grant_type

https://blog.yorkxin.org/2013/09/30/oauth2-3-endpoints.html

Grant Type
Grant Type 透過 grant_type 參數來指定，其值定義如下：

值意義
authorization_code 用 Authorization Code 求 Access Token (Authorization Code Grant Flow)。
password 用 Resorce Owner Password Credentials 求 Access Token (Resource Owner Password Credentials Grant Flow)。
client_credentials 用 Client Credentials 求 Access Token (Client Credentials Grant Flow)。
refresh_token 用 Refresh Token 換發 Access Token。
